Bryant EZXCAB

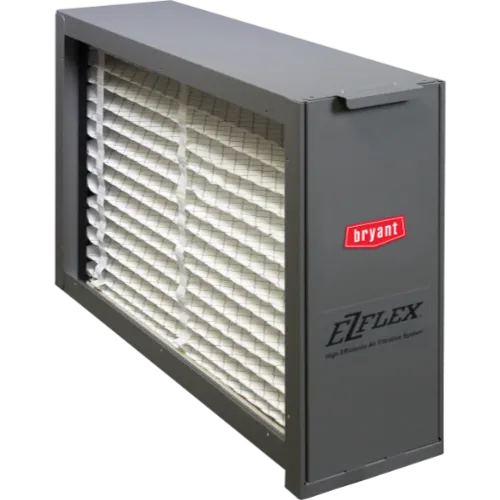

Bryant EZXCAB Air Purifier

High-Efficiency Indoor Air Filtration

The Legacy Line EZ Flex Cabinet Air Filter can protect and improve heating and cooling system performance with a MERV 10 efficiency that treats the air flowing through your system. Cleaning the air has never been simpler thanks to the easy to remove filter cabinet door.

Performance: Standard Filtration
MERV Efficiency: 10

Features

MERV 10 filtration rating
Captures 63% of particles 1.0 to 3.0 microns in size
Helps protect heating and cooling equipment
Deep pleated filters hold more dust for fewer filter changes
Easy to replace filters. See owners manual for replacement schedule.
10-year parts limited warranty on cabinet upon timely registration

Options

MERV 13 replacement filters

Specifications

Performance

Efficiency – MERV 10 filtration captures 63% of particles 1.0 to 3.0 microns in size
Rated airflow – 0016: 1600 cu/ft/min; 0020: 2000 cu/ft/min
Pressure drop – Creates minimal airflow resistance

Installation

Installation – For use with furnaces and fan coils in upflow, downflow or horizontal positions

Aesthetics

Cabinet – 20-gauge, steel cabinet in taupe color to match Bryant furnaces and fan coils
Dimensions – Furnace/fan coil sizes: 0016: 17″H x 7.25″W x 25″D; 0020: 21″H x 7.25″W x 25″D
