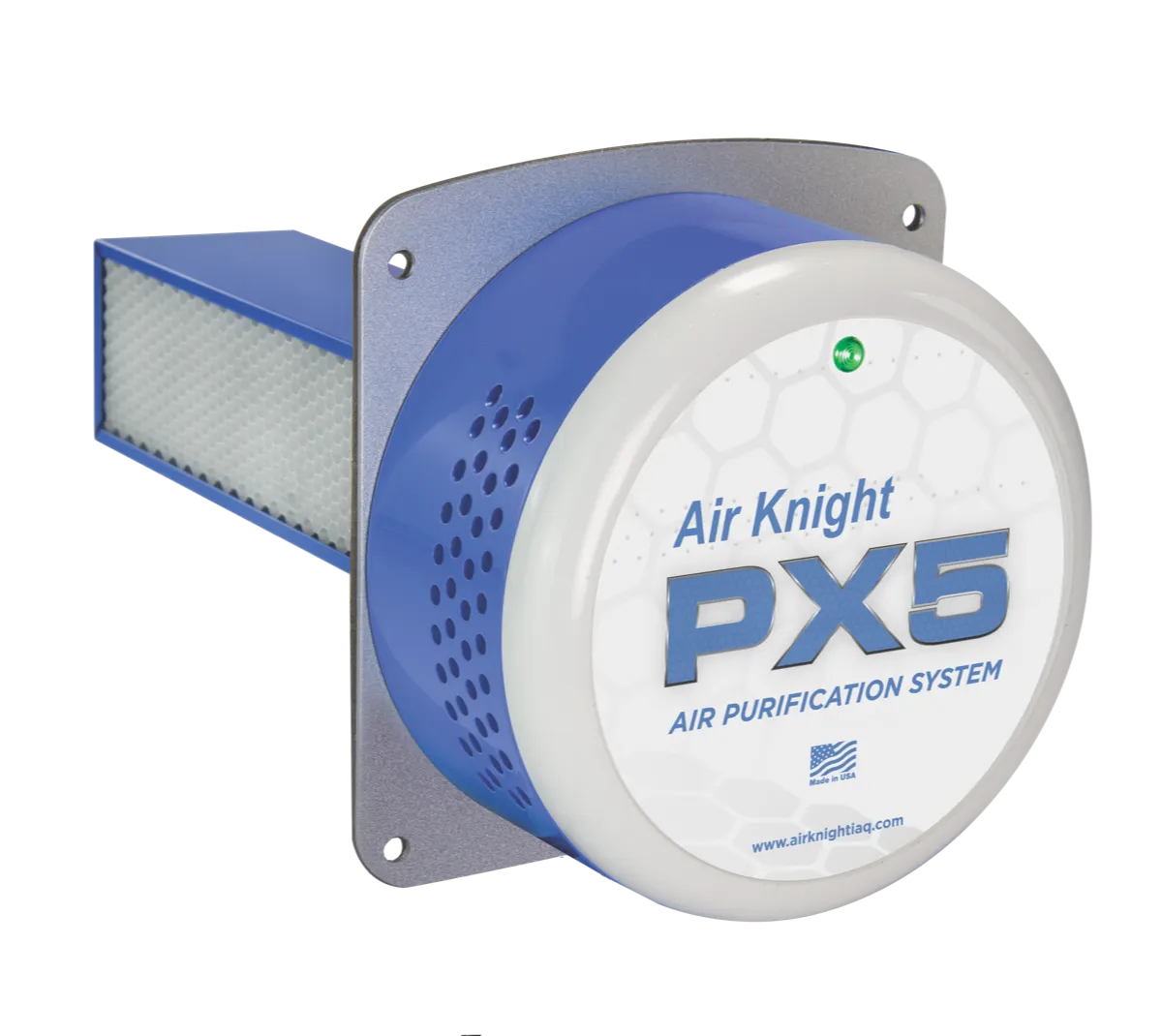

Air Knight PX5

Air Knight PX5 Air Purifier

Advanced UV technology and a key part of the IAQ solution.

The Air Knight® PX5’s technology consists of UV light energy to clean the conditioned air. Quality construction and high air flow design ensures that your PX5 can handle the air volume from today’s high SEER and commercial2 HVAC systems.

Features

Advanced UV Technology – Germicidal UV provides a key part to a comprehensive IAQ solution.
Ozone Free – Meets and surpasses UL 2998 no ozone standards. CARB certified.
Laboratory Tested – Laboratory tested and effective reduces odors, VOC’s, and bacteria.
Reliability – Expanded range ballast for increased electrical reliability.
Residential and commercial use – Sizing for residential and commercial applications.
IAQ Expandable – Includes an auxiliary power port to easily install an additional 24V germicidal UV-C light to any HVAC system.
Safety – Integrated safety interlock switch prevents unit operation when not installed.

Specifications

Model

PX5 5″ #TT-AK245-V2
PX5 9″ #TT-AK249-V2

Size and Weight

5″ Unit 6.5”H x 6”W x 8.5”L Mounting Plate 8”H x 8”W
9″ Unit 6.5”H x 6”W x 11.75”L Mounting Plate 8”H x 8”W

Others

Electrical – 24VAC, 50/60Hz. Expanded range ballast
Power Consumption – 13.3 watts
Airflow – 5″ Unit Suitable for up to 2.5 ton systems | 9″ Unit Suitable for 3+ ton systems
Listings – UL 2998 validated no ozone
Warranty – 5-yr power supply. 4-yr core. 2-yr bulb
