Bryant 189BNV

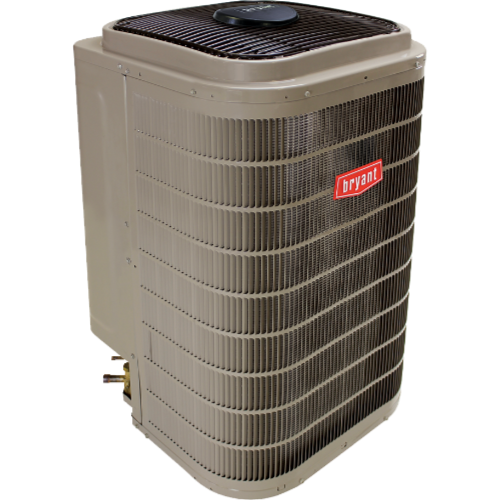

Bryant 189BNV Air Conditioner

Taking Comfort and Quiet to a Whole New Level

Small but powerful, this unique air conditioner uses inverter technology and a rotary compressor to deliver variable-speed comfort control. That translates to highly efficient, low-stage cooling that can operate down to 25% capacity for ultra-quiet operation. What’s more, it can provide exceptional dehumidification and comfort.

Cooling Efficiency: up to 19 SEER2
Compressor Type: Variable-Speed
Sound Rating (Decibels): as low as 56

Features

Enjoy cool, summer comfort with up to 19 SEER2 & up to 13 EER2 efficiency
Optimal dehumidification capability with the Evolution Connex™ control
5 stages of variable-speed operation with longer, lower stage cooling cycles to give you more energy savings and even temperature comfort
Exceptionally quiet operation in low speeds down to 56 decibels
Soft start and smooth ramp up to operating speeds
Excellent performance with zoned systems
Bryant’s smallest ducted, variable-speed air conditioner will fit discreetly into your landscape
Uses non-ozone depleting Puron® refrigerant
Sheet metal construction with baked-on, complete outer paint coverage for lasting durability against the elements
Attractive, louvered cabinet protects the coil against physical damage
10-year parts limited warranty upon registration

Specifications

Efficiency Management

Energy Efficiency – Up to 19 SEER2 & up to 13 EER2
ENERGY STAR® – Meets ENERGY STAR® guidelines for high efficiency in select sizes
Cooling stages – 5-stages for variable-speed operation

Comfort Management

Cooling – Best levels of Bryant cooling control to minimize temperature fluctuation
Dehumidification – Optimal humidity management through low stage operation when managed by Evolution Connex control

Sound

Quiet levels – 56 dB during low stage operating condition
AeroQuiet System II™ design – Pressure equalizer valve, compressor sound blanket; quiet mount split post compressor grommets, forward-swept fan blade
Startup – Soft start and smooth ramp up

Conveniences

Notifications – Maintenance reminders and service notices through the advanced system diagnostics of the Evolution Connex control

Technology

Compressor – 5-stage rotary with 25-100% capacity range
Control – Inverter driven compressor and fan motor managed by Evolution Connex control
Refrigerant – Puron® refrigerant
Compatibility – Designed for best efficiencies when part of Evolution system but compatible with 2-stage thermostats and suitable indoor products for 2-stage operation and step up to full Evolution system at later time
Protections – High and low pressure switches; filter drier
Capacity – 1 to 5 tons
